Professional System Holds Up to 4,500 Karaoke Jukebox • Pioneer

Description

Français

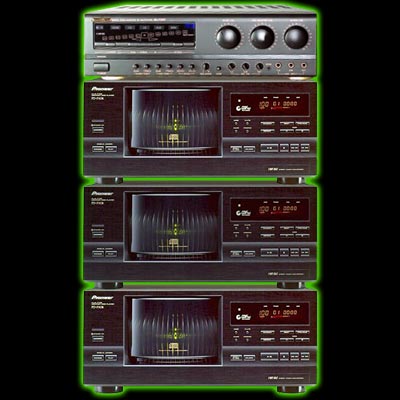

Professional System Holds Up to 4,500 Karaoke Jukebox

300 CD+G Karaoke System

Keep all your CD+Gs inside the drive away from dust and accidents.

This system is of the best quality and includes all the options to make karaoke loved by everyone. In addition to echo, tone and independent volume controls it will integrate well with your current equipment.

With its integrated disc system there is no longer any manipulation of CD+Gs, no spots, no scratches! It is also a good insurance against the theft of your precious music.

Audio 2000’S Mixer Specifications

• Remote Control
• Six Microphone Inputs
• Master Microphone Volume Control
• Three Microphone Volume Controls
• Microphone Tone Control (Treble/Bass)
• Master Music Volume Control
• Music Tone Control (Treble/Bass)
• Digital Key Controller (+/- 6 Steps)
• Echo Volume/Delay/Repeat Controls
• VCM Automatic Control
• Microphone Sound Effector Loop
• Music Sound Effector Loop
• Four Stereo Audio Inputs
• Three Video Inputs and Outputs

Total Harmonic Distortion

0.03% @ 1KHz, -3dB, 6 Ohms

Mic. Input Sensitivity

6mV / 600 Ohms

Input Sensitivity

300mV / 22 KOhms

Output Level (Pre-Out)

2.5V / 1 KOhms

Mic. Freq. Response

10 – 25, 000 Hz

Music Freq. Response

10 – 40, 000 Hz

Tone Control Char. (Bass)

+/- 10 dB @ 100 Hz

Tone Control Char. (Treble)

+/- 10 dB @ 10 KHz

Key Control Range

13 steps, +/- 3 Tones

Video Input Sensitivity

1Vp-p @ 75 Ohms

Video Output Sensitivity

1Vp-p @ 75 Ohms

Power Consumption

15W

AC Power Outlets(Switched)

One Outlet (100W Max)

AC Power Outlets(Unswitched)

One Outlet (200W Max)

Dimensions (W X H X D)

420 X 130 X 398mm (16.5 X 5.1 X 15.7 inch)

Weight

18 lb (8.2 Kg)

Accessories

Remote Control Commander

Pioneer Player Specifications

3 Players are included in the kit.

Holding enough music to go straight through a 4-day party, the Pioneer 101-CD/CD+G has two great features for recording: CD Synchro, for super-easy CD-to-tape recording, and an optical digital out for connection to a CD Recorder. Plus, Best Selection Memory remembers and plays your 15 favorite tracks.

Key Features

101 Disc Capacity

Optical Digital out

SR Remote

New Roulette Rack Design

Format

101 Disc Capacity

Single Loader for added convenience

Technical Features

1-Bit D/A Converter

Optical Digital Output

Convenience Features

Motorized Door

Pioneer SR Remote Control

Full Random Play

Custom Mode Functions (3)

Best Selection Memory (20 Tracks)

Memory Hold

CD-Deck Synchro

Dimensions

Height: 7-1/2 inch

Width: 16-9/16 inch

Depth: 15-13/16 inch
